Manufacturer:Rosemount
Part#:0065G01W0000N0190A1I1
Availability: Usually ships in 3 to 4 weeks
Shipping: FREE FedEx /UPS Ground
Warranty: 1 year replacement Warranty

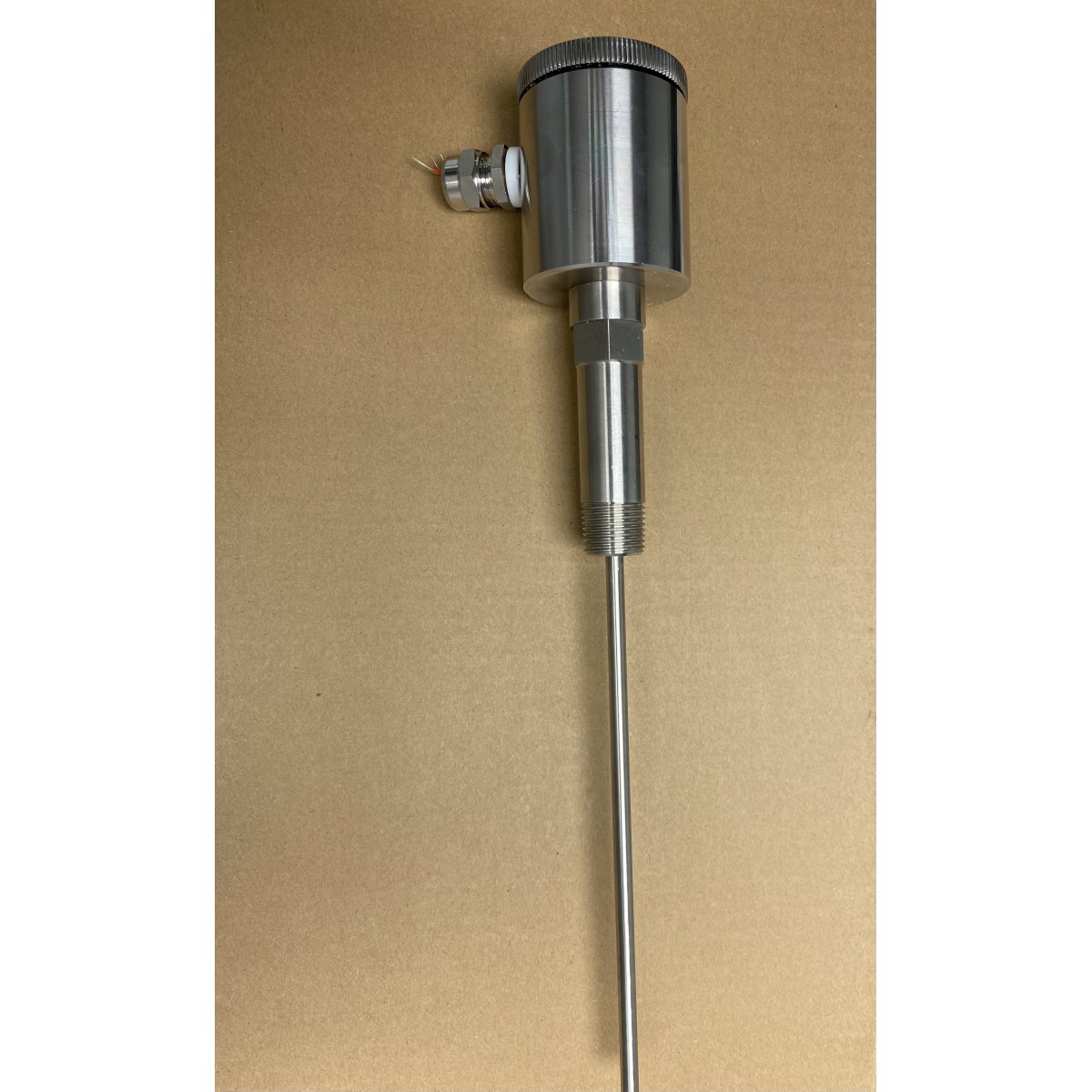

As an industry-standard Pt-100 resistant temperature detector (RTD), the
Rosemount 65 RTD Temperature Sensor is a single or dual element device
designed per IEC 751 and capable of covering a wide range of
temperatures. This sensor is vibration resistant and the connection
heads feature fast mounting and replacement. This RTD includes a
calibration option of Class A or B accuracy or a calibration schedule
option with Callendar-Van Dusen constants.
| Product Specification | |
| Connection head | Rosemount Stainless Steel | 68 | M20 x 1.5 |
| Sensor lead wire termination | Flying Leads - No Springs on DIN plate |
| Sensor type | RTD, single element, 4-wire |
| Temperature range | –50 to 450 °C (–58 to 842 °F) |
| Model | 0065 (Pt 100 RTD (IEC 751) without thermowell) |
