Pressure Transmitter

(0 review)

Write a review

Manufacturer:Yokogawa

Part#:EJA438E-JASCG-917DN-AA11Z1Z00-AB25/Z Z= JP1469

Availability: Usually ships in 3 to 4 weeks
Shipping: FREE FedEx /UPS Ground
Warranty: 1 year replacement Warranty

$8,728.50

Quantity:

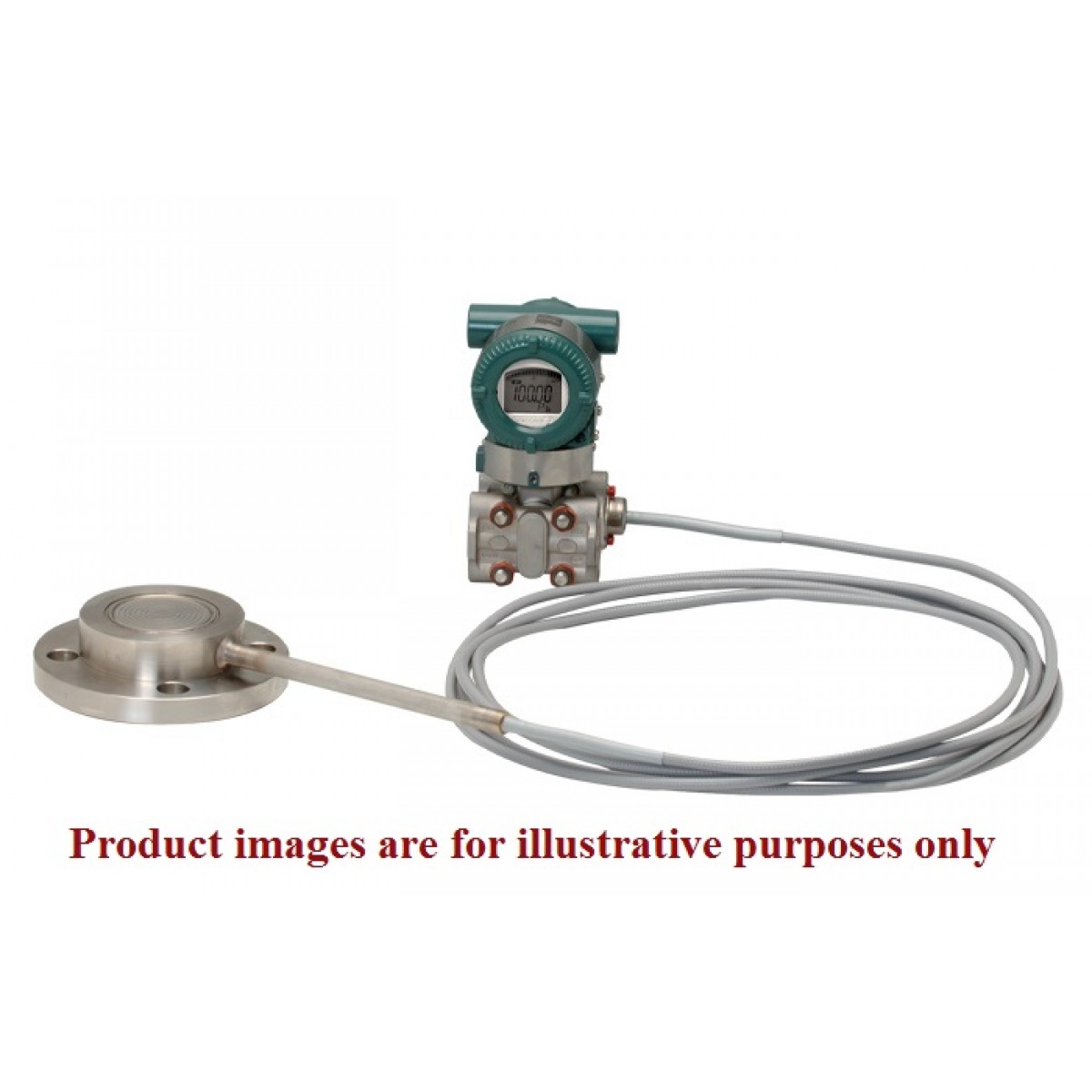

EJA438E Diaphragm Sealed Gauge Pressure Transmitters can be used to measure liquid, gas, or steam pressure. EJA438E outputs a 4 to 20 mA DC signal corresponding to the measured pressure. It also features quick response, remote setup and monitoring via BRAIN or HART communications and self-diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power types, are certified as complying with SIL 2 for safety requirement.

Product Specification
Output Signal	4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)
Measurement span (capsule)	0.06 to 3.5 MPa (8.6 to 500 psi)
Electrical connection	1/2 NPT female, two electrical connections with a blind plug
Integral indicator	Digital indicator
Amplifier housing	Cast aluminum alloy
